Bolt Analysing Systems

Request to buy this product

Pneumatic System

  • Fully calibrated Pneumatic load cell bolt analyser, capable of analysing bolts from M24 to M64 and torque from 700 Nm to 20,000 Nm.

Electric System

  • Fully calibrated Electric load cell bolt analyser, capable of analysing bolts from M16 to M36 and torque from 2,000 Nm to 7,000 Nm


Features:

  • Forward & reverse on torque drive
  • Digital readout for calibrated torque drive
  • Clear load indicator readout

Benefits:

  • Accuracy; torque drive is accurate to within +/-0.5% of reading from 20% - 100% of full scale
  • +/-5%  repeatability on torque drive
  • Quiet operation
  • Non-impacting
  • Adaptable for a range of sockets
  • Capable of testing bolts of various lengths
  • Robust construction
  • Self contained unit; no PC required

Image Gallery

Click on an image to enlarge

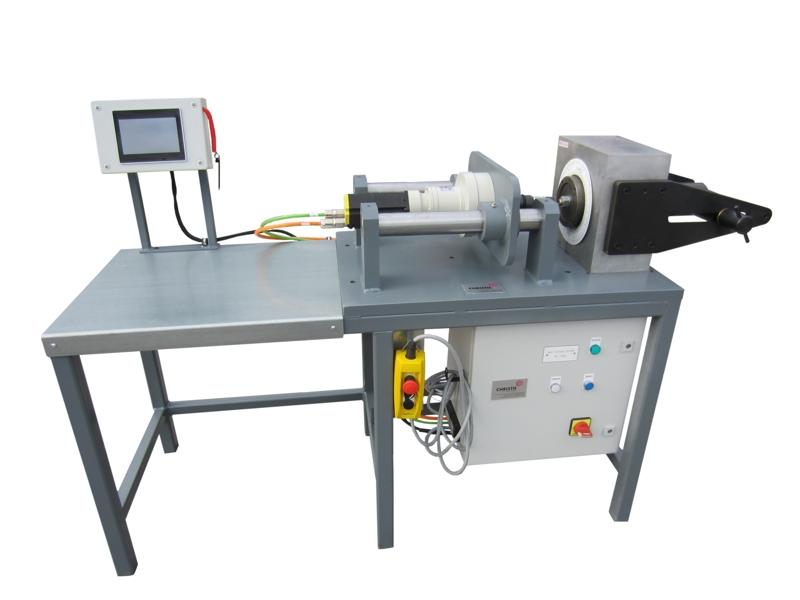

  • Electric Bolt Analysing System

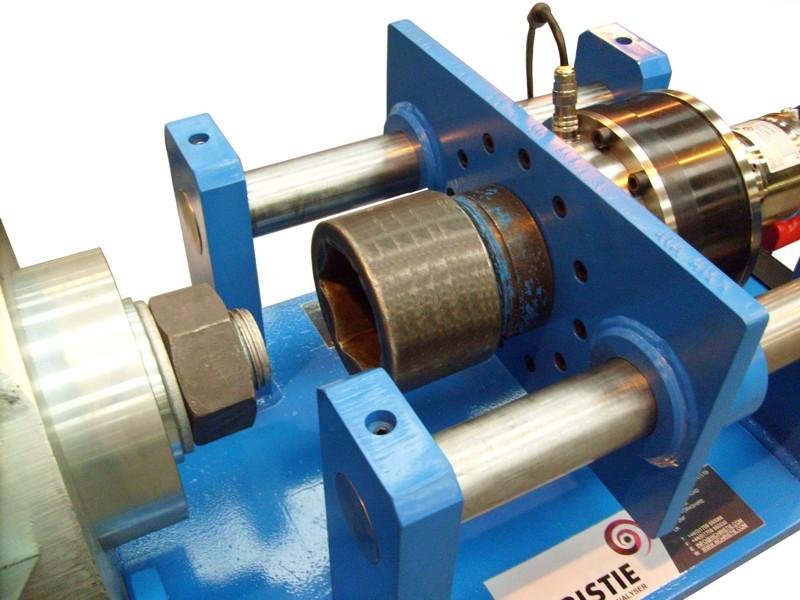

  • Pneumatic Bolt Analysing System

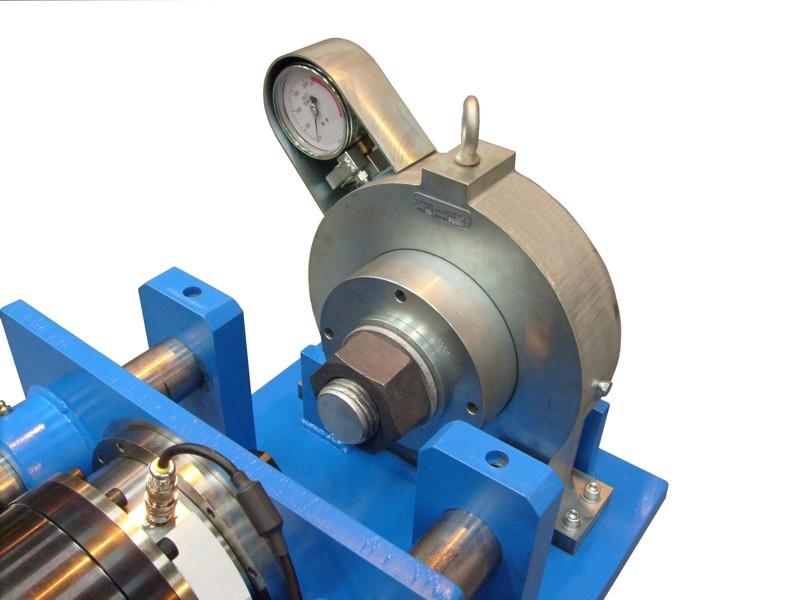

  • Pneumatic Bolt Analysing System

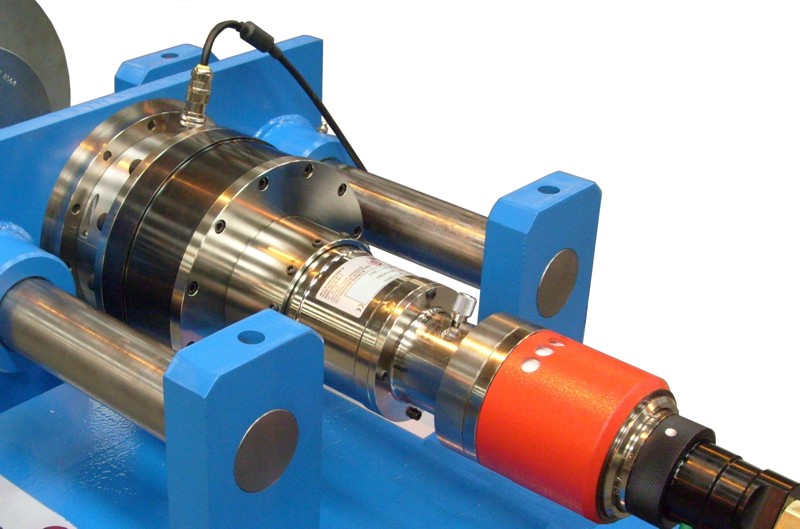

  • Pneumatic Bolt Analysing System

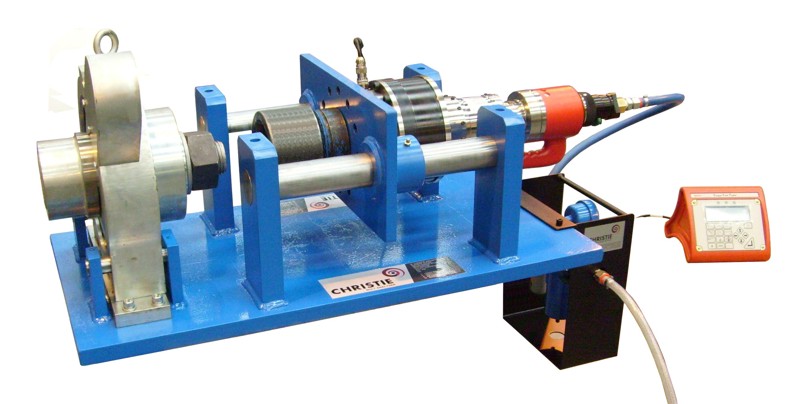

  • Pneumatic Bolt Analysing System
