Inspection Camera System

Request to buy this product

Application: Visual inspection of 'out of reach' or difficult access areas.

Benefits:

  • Easy to use, complete integral system - 'switch on and go'
  • ‚Äč1 person operation
  • Save time and money due to minimal set-up required
  • Use as a preventative maintenance tool
  • Light, yet robust
  • Adjustable in both length and angle to allow positioning eaxctly where needed
  • Provides clear images on the colour TFT screen, even in the dark
  • Safe 12V power usage



Features:

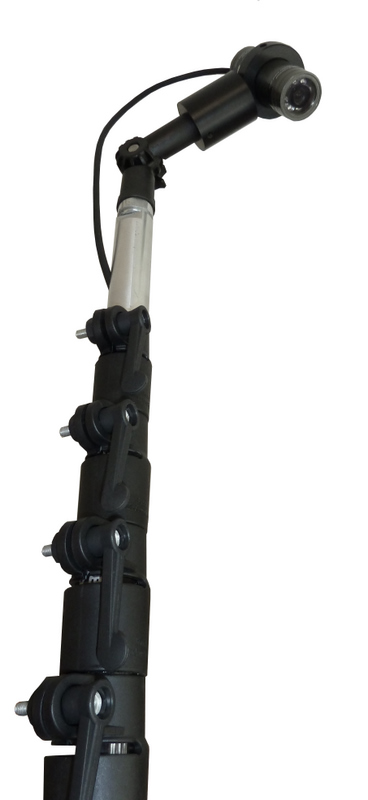

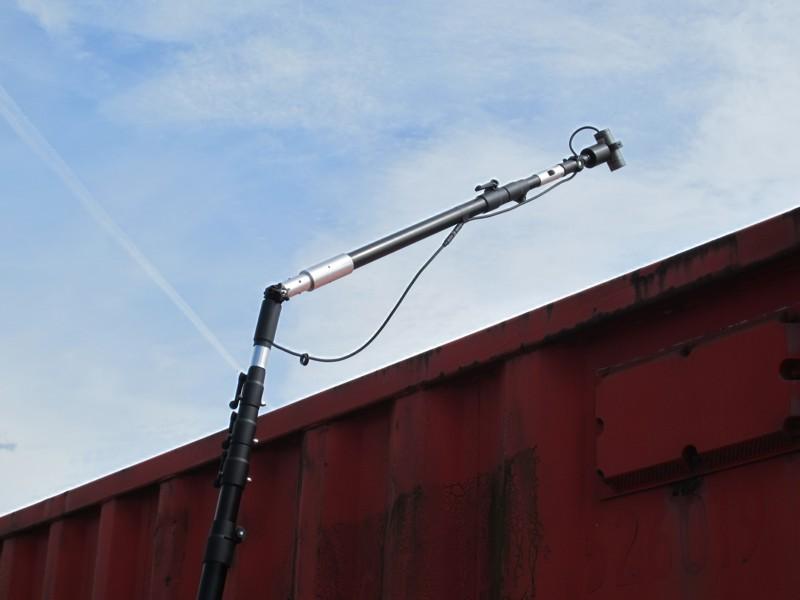

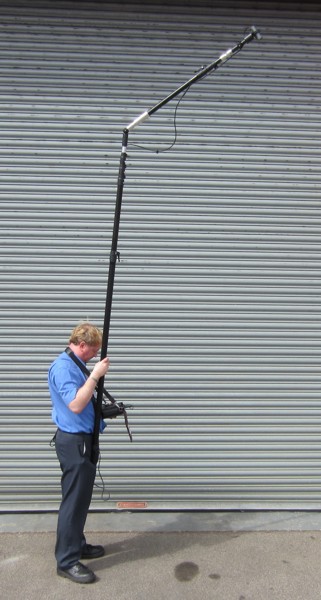

Telescopic Pole

  • Main telescopic pole 1.7m in retracted postion, 3m extended
  • Adjustable angle extension arm 0.8m in retracted position, 1.5m extended
  • Waist worn pole butt for stability when handling
  • Quick release duralok clamps
  • Internal runs for camera cable
  • 4 pin waterproof 'Din' connector for monitor
  • Glass fibre material for strength and rigidity

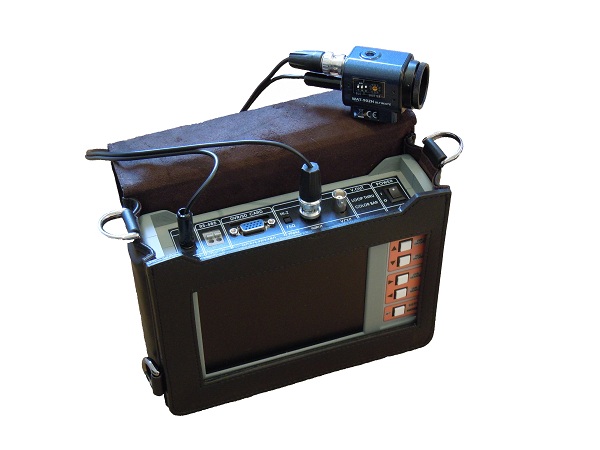

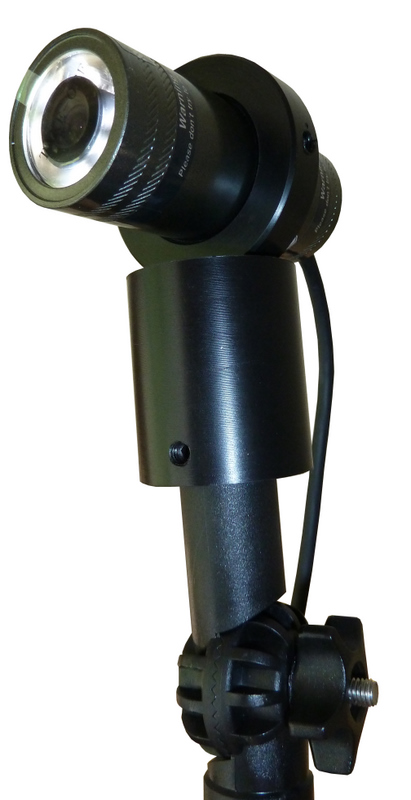

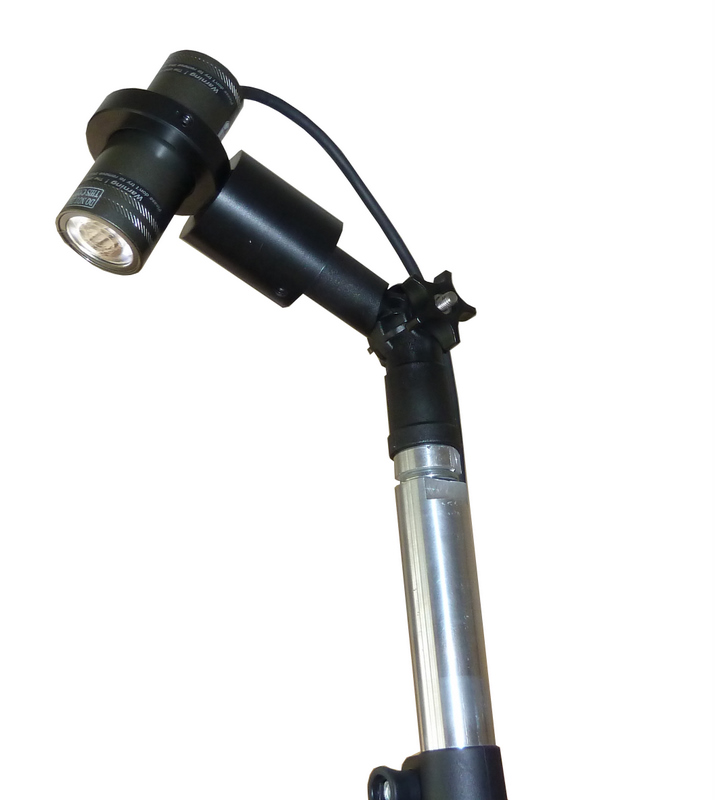

Hi Resolution Colour Camera with White LED Lighting

  • Sony CCD image chip
  • High colour reproduction
  • 12 volt power consumption
  • Fitted to angle adapter for angle adjustment

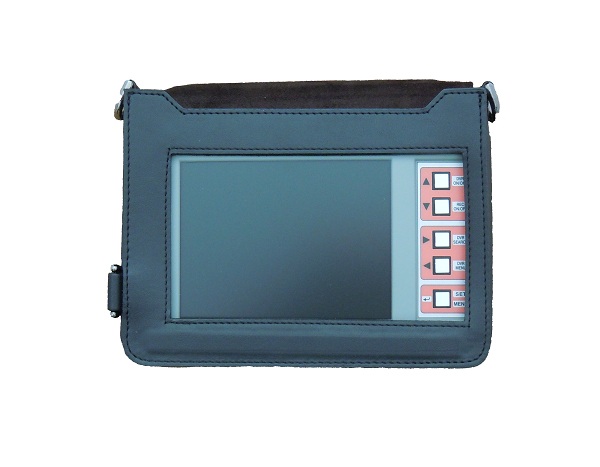

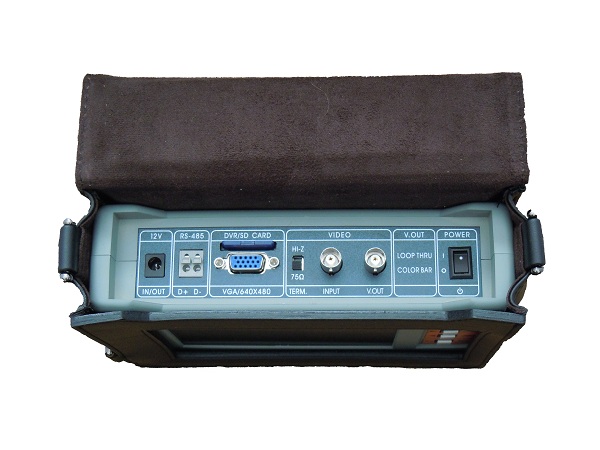

Portable 5.6" Monitor

  • LED back light
  • Operates on high capacity Lithium batteries lasting up to 8 hours
  • Zoom function for image enhancement
  • Supplied with protective case and carry strap



Other pole and system configurations are available. Call us to discuss your requirements further.
