Fixture for Disassembling and Reassembling Jigger Pick Units



Disassembling and reassembling the Jigger Pick units is difficult due to their weight (~25 Kgs), the complex shape, the torque required (up to 200-300 Nm), and the high manual impact required to remove some of the fixings.
Removal and reattachment of all fasteners, roll pins, c-lock pins, and couplings, therefore requires the Jigger Pick to be held securely in a suitable orientation.


The system incorporates a hoist to remove the need for manual handling, combined with a 360° rotating fixture to allow secure holding and ergonomic positioning of the Jigger Pick for complete strip-down and reassembly of all components. The system also includes a C-RAD 5 (500 Nm) pneumatic torque tool for the removal/refitting of couplings and front end assembly bolt.



This system can be adapted/redesigned for use in other workshops, to suit your specific handling requirements.



       View our demonstration video





Please click HERE to download a product leaflet

Image Gallery

Click on an image to enlarge

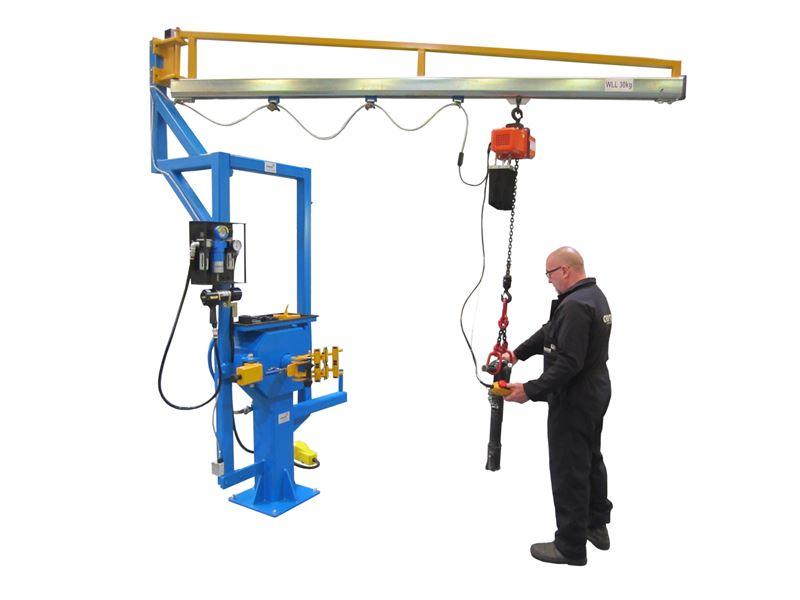

  • Jigger Pick Fixture

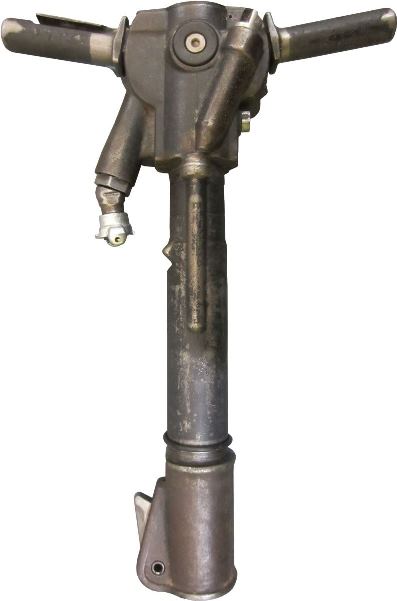

  • Jigger Pick

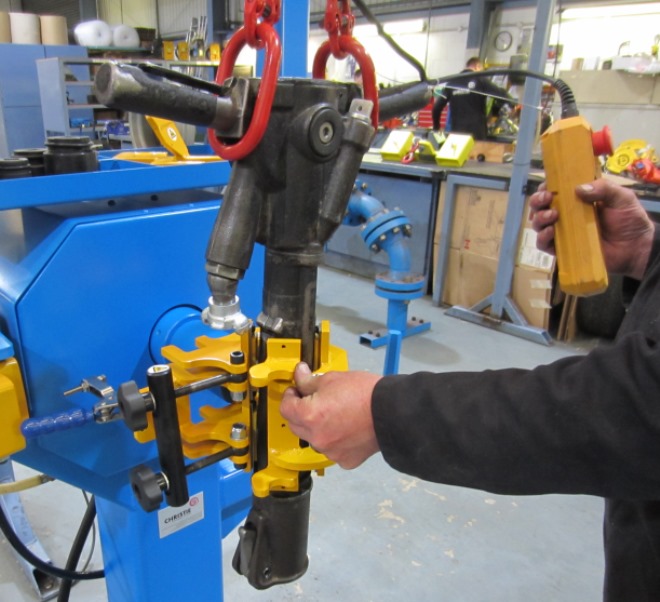

  • Moving the Jigger Pick into position for clamping within the fixture

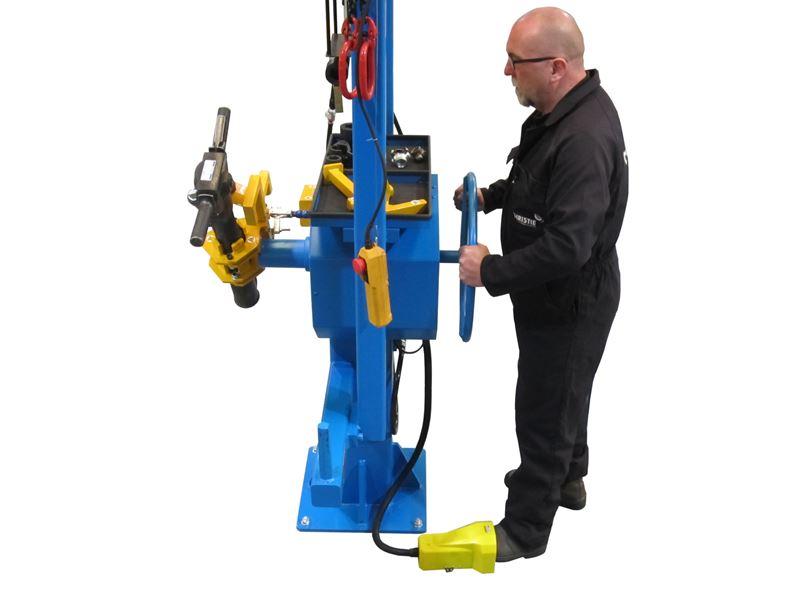

  • Jigger Pick can be rotated 360 degrees

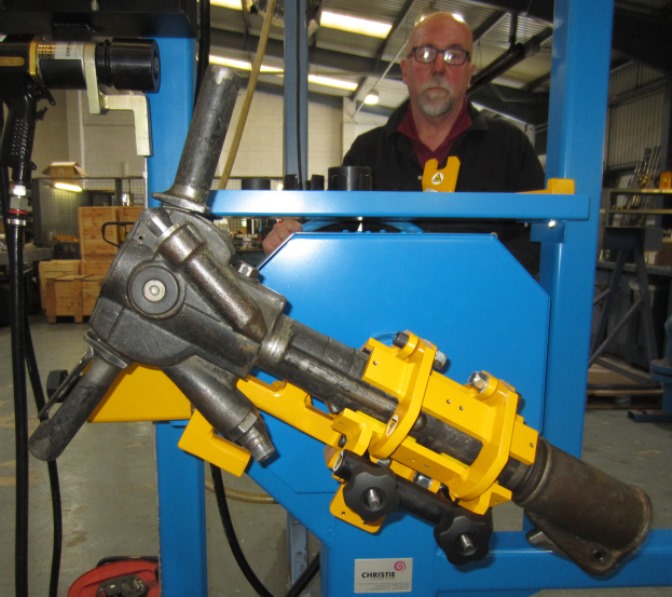

  • Jigger Pick can be rotated 360 degrees

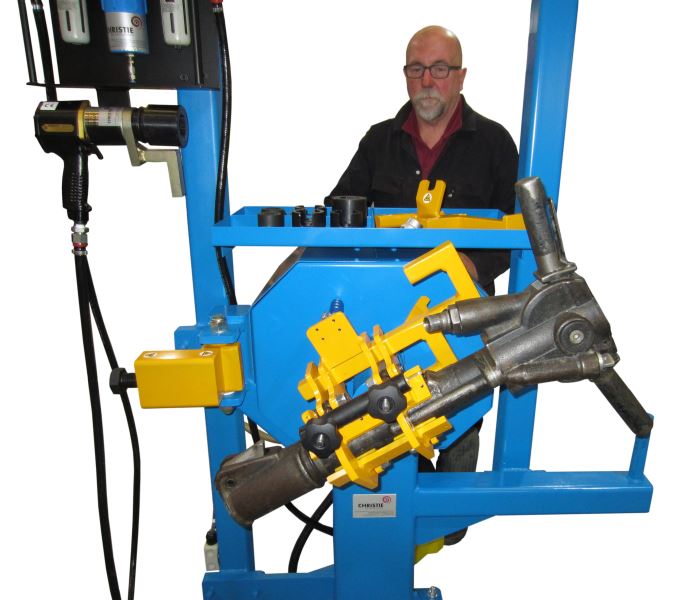

  • Jigger Pick can be rotated 360 degrees

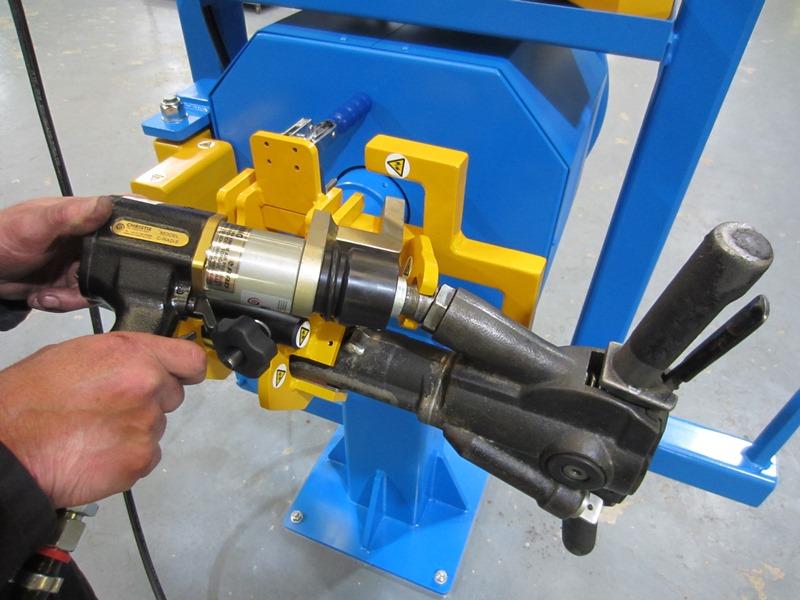

  • Use of the C-RAD5 Pneumatic Torque Tool for removal/refitting of couplings.

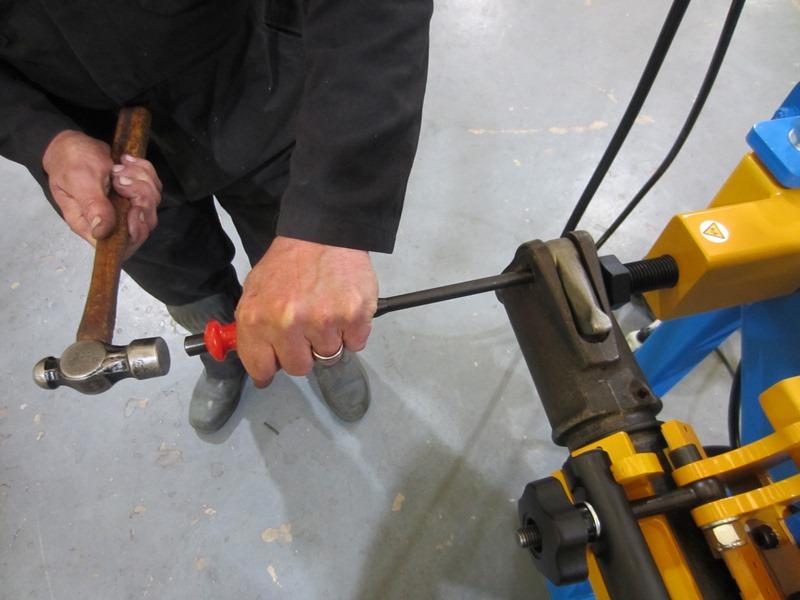

  • Jigger Pick is secured to allow easy removal of pins
