4 Stage Offset Gearbox with Hand Torque Multiplier

Request to buy this product

Industry: Industrial Manufacturing

Application:

Tightening & un-tightening of bolts on an assembly frame

Problem:

  • Point of tightening is obstructed by part of the assembly frame
  • Current procedure involves difficult and unsafe manual method

Solution:

4 stage offset gearbox designed for use in conjunction with a Hand Torque Multiplier

Features:

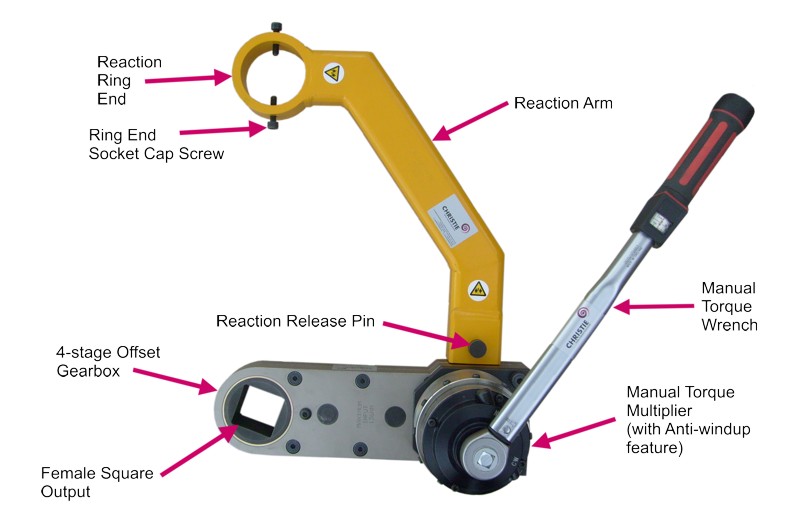

  • Detachable cranked reaction arm for stable reaction
  • Steel construction for robustness
  • Adjustable cap screws in reaction ring end ensure secure fitting


Benefits:

  • Design of gearbox overcomes the obstruction problem
  • Ensures a safe and secure reaction, whilst avoiding damage to the assembly frame
  • Easy to use - no power required
  • Provides an effective way of tightening bolts to the correct torque
  • Anti-windup feature of torque multiplier ensures it is 'fully wound' so that torque is directly applied to the offset gearbox output square




Image Gallery

Click on an image to enlarge

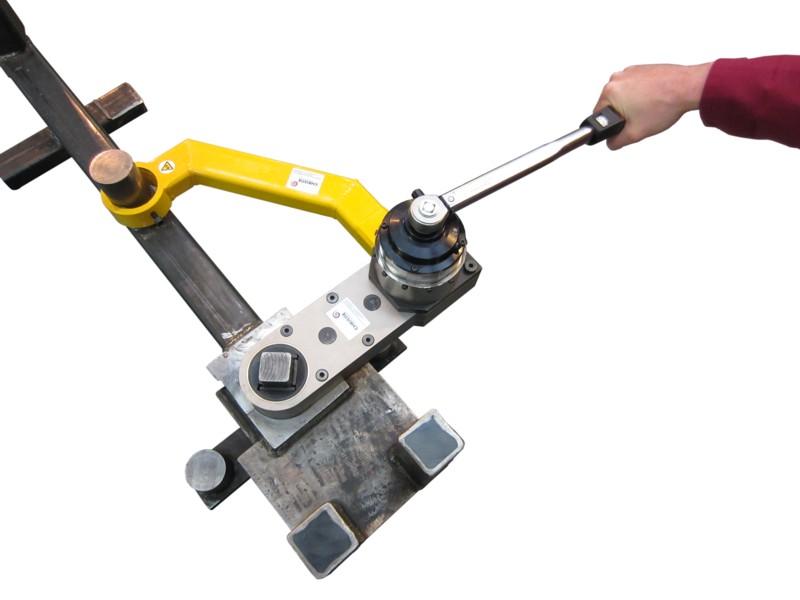

  • 4 Stage Offset Gearbox with Hand Torque Multiplier

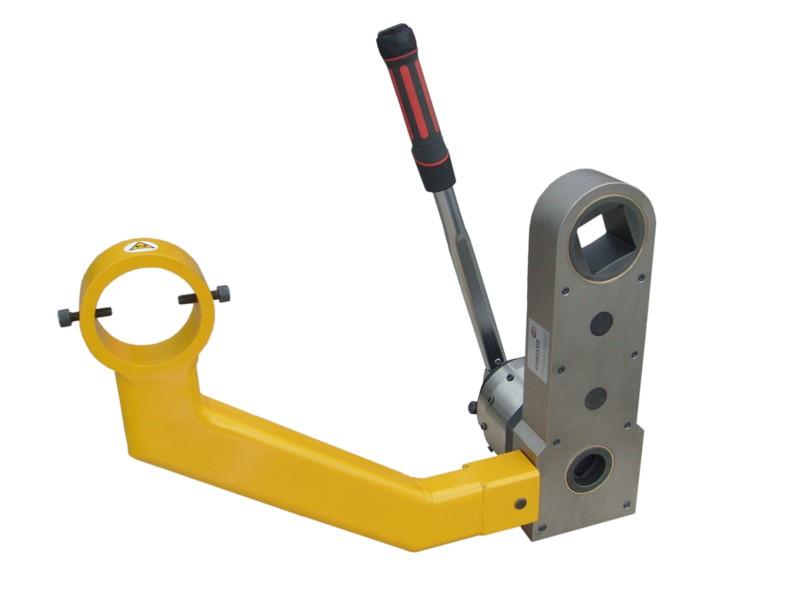

  • 4 Stage Offset Gearbox with Hand Torque Multiplier
