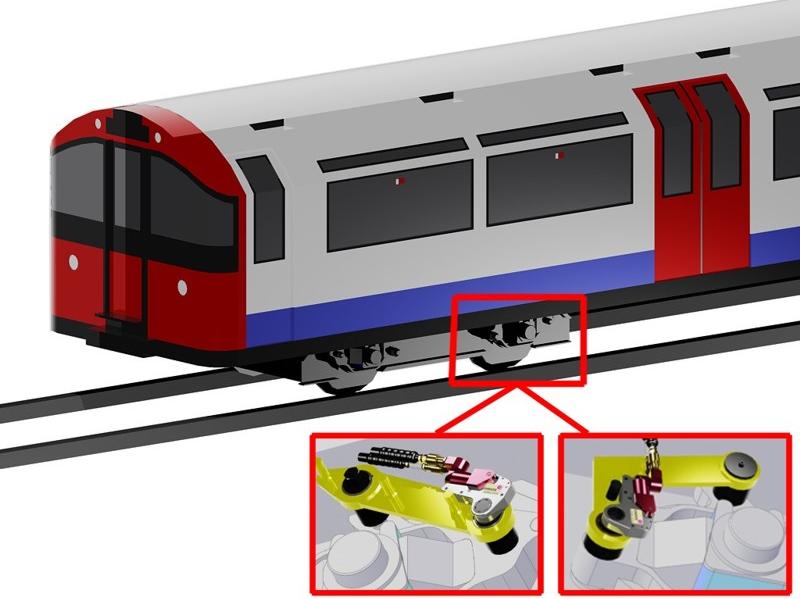

Underground Train Bogie Frame

Industry:  Rail

Application:

• Tightening/un-tightening of bolts on an underground train bogie frame

Problem:

• Difficult access to the bolts on the bogie frame caused by beam & sole-bar obstructions
• Health & safety issues associated with tightening/un-tightening of the bolts manually
• Avoiding damage to the high grade Aluminium section of the bogie system during tightening/un-tightening of the bolts

Solution:

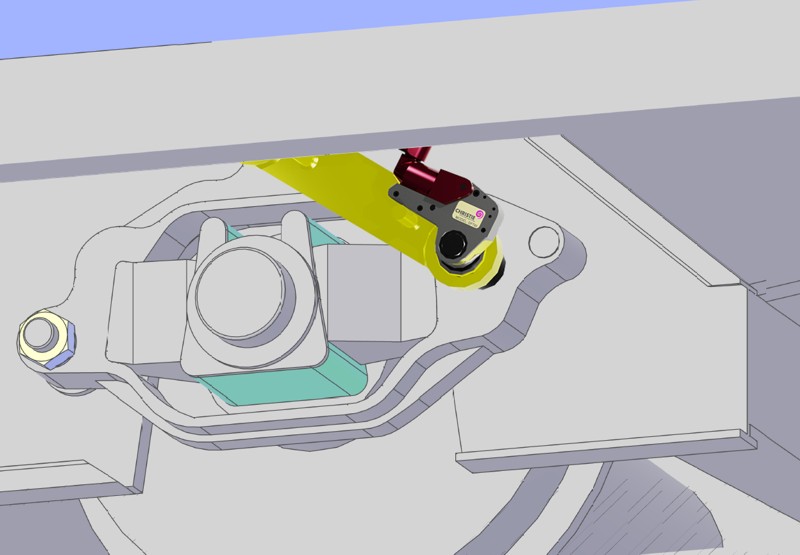

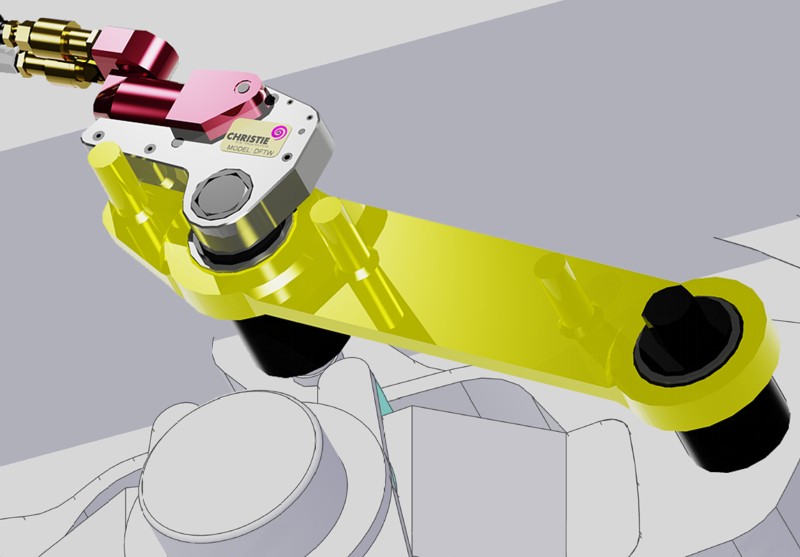

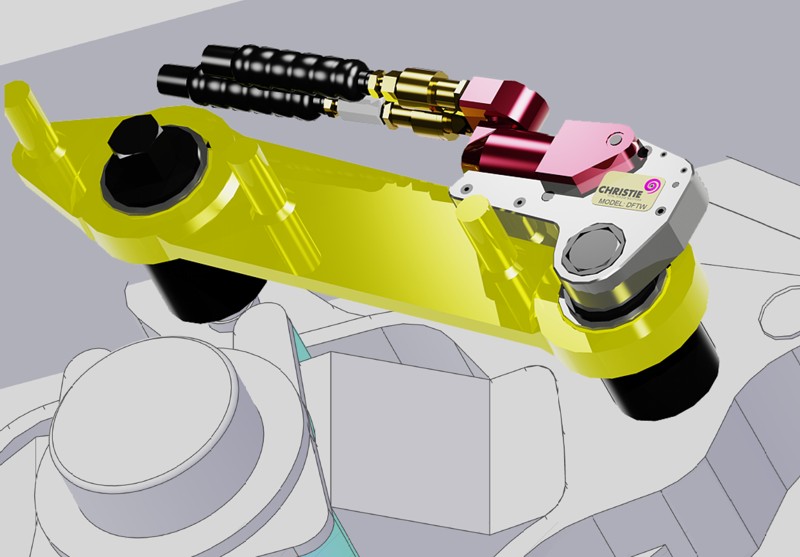

• Straight reaction platform for tightening/un-tightening of 55mm A/F bolts (position of wrench can be altered to suit each bolt)

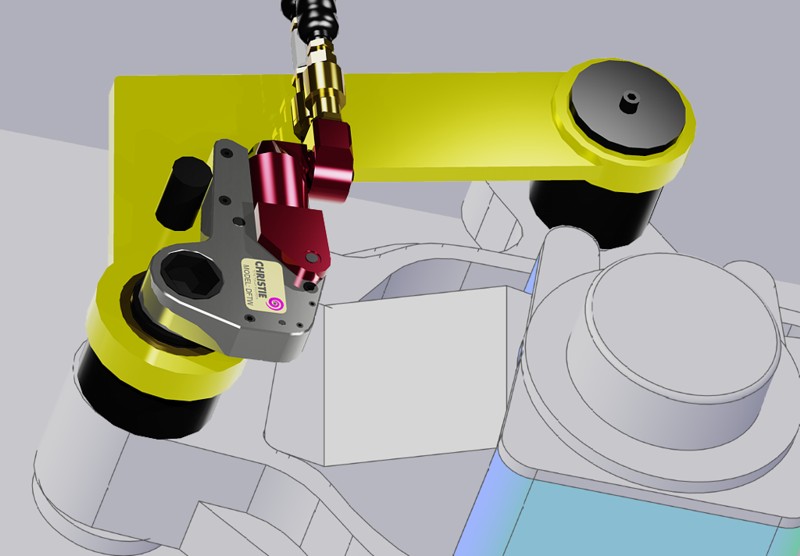

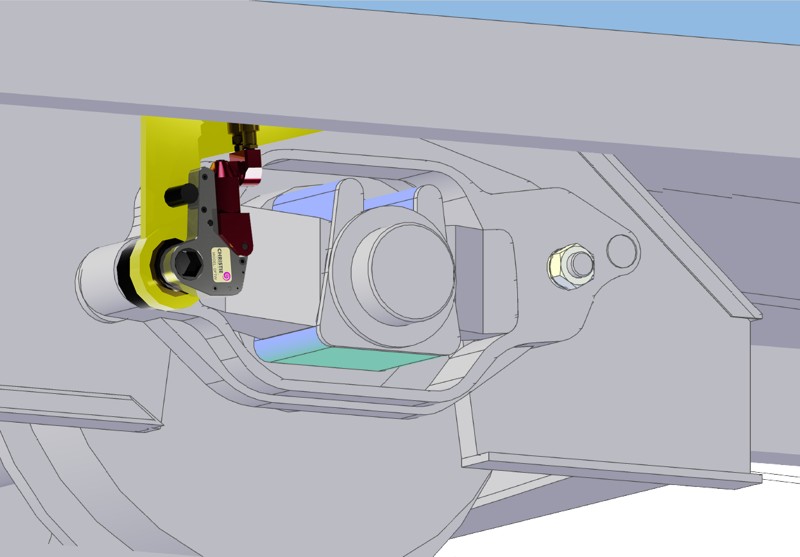

• Cranked reaction platform for tightening/un-tightening of 75mm A/F bolt

Features:

• Integral reaction posts
• designed for use with direct fit hydraulic wrench
• Manufactured from high quality Carbon steel for strength & longevity

Benefits:

• Avoids reacting on the bogie frame
• Job specific tooling saves time
• Spreads the load when reacting
• Measured & correct torque applied, giving improved joint integrity
• Overcomes the access problems caused by the beam & sole-bar obstructions
• A single hydraulic wrench with two reaction platforms will suit all the bolts on this application
• Safe & accurate controlled bolting process

Tooling:

• Christie 2DFTW-36 A/F (Max. 1866 Nm) Hydraulic Torque Wrench
• Christie Hydraulic Pump
