Underground Train Bogie Hydraulic Lifting System

Industry: Rail


Application:

• Lifting Underground Train Bogies by up to 50mm to allow general maintenance and skimming of wheels

Problem:

• Height and width restrictions on the train and within the Depot Maintenance Area
• Unreliable & overcomplicated existing hydraulic system with split flow pump
• Existing hydraulic system is expensive to maintain/replace
• Existing system is also cumbersome (too heavy), making handling difficult
• Variable height of railway lines within the workshop

Solution:

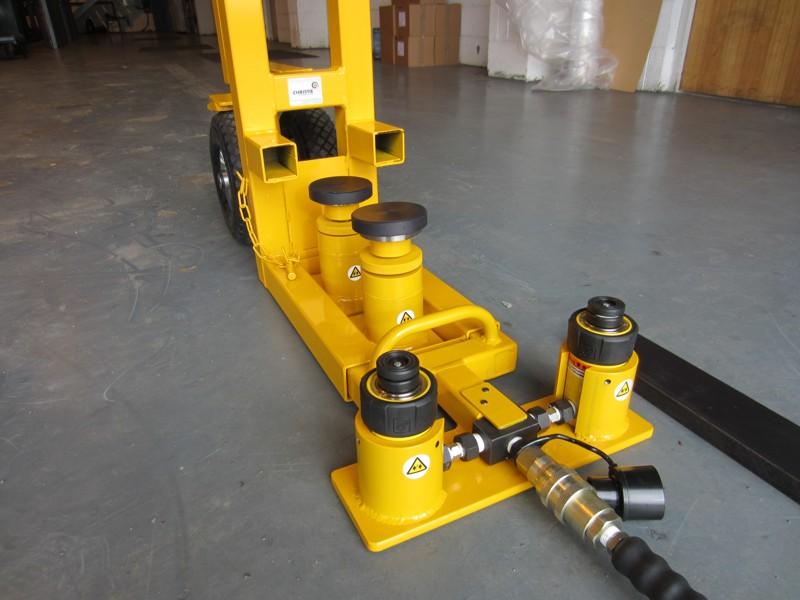

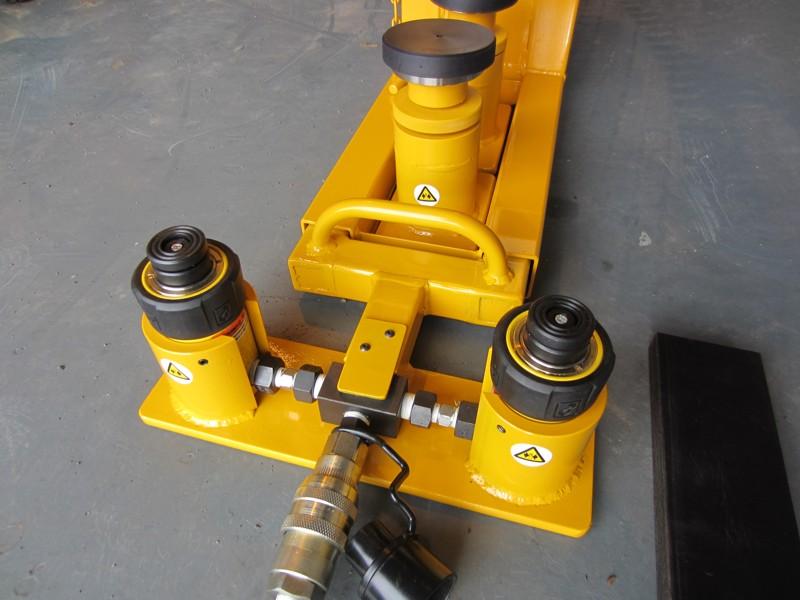

• 4 x 10 tonne, 54mm stroke, single acting hydraulic lifting system

Features:

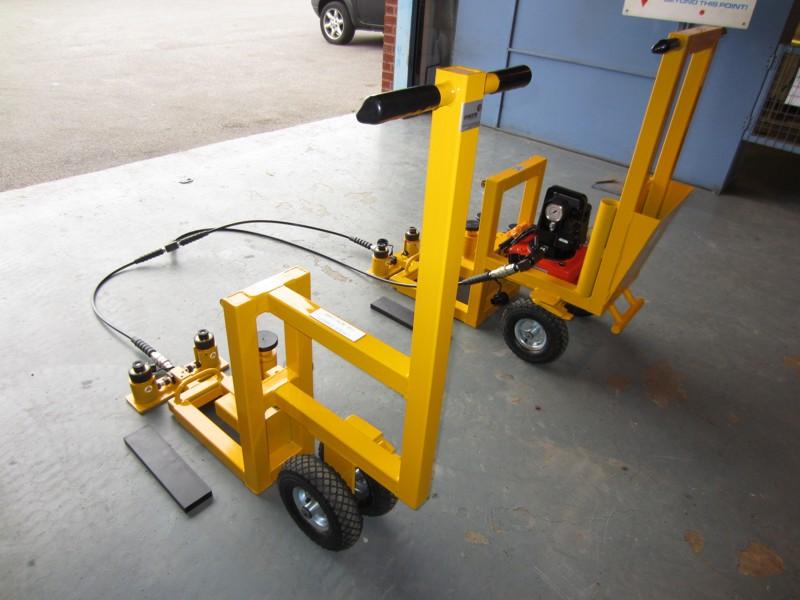

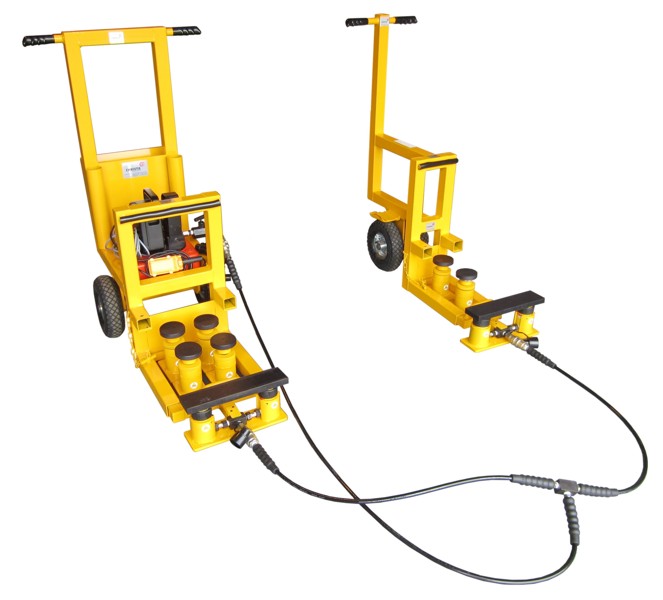

• Different sized units for manoeuvring flexibility within the Maintenance Area

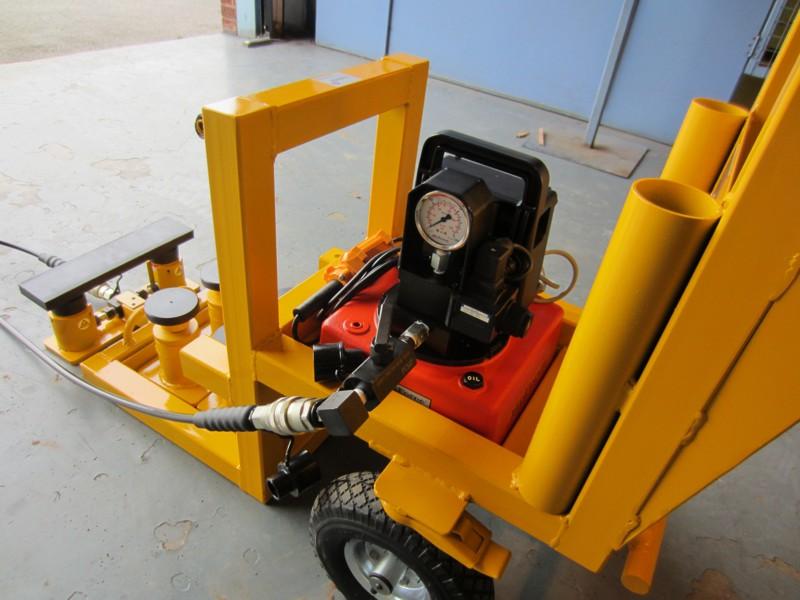

• Electrically actuated hydraulic power packs
• Supplied with adjustable support stands, allowing lifting system to be removed and used on other train units
• Supplied with packers to allow for variable heights
• Controlled lowering system
• Two position jacking setting for alternative rail heights
• Braked wheels for extra stability

Benefits:

• Self-contained system requiring no additional equipment
• Easy maintenance system
• Controlled adjustment (lifting & lowering) gives a safe working system
• Portable and highly manoeuvrable; can be repositioned on-site or moved to other sites
