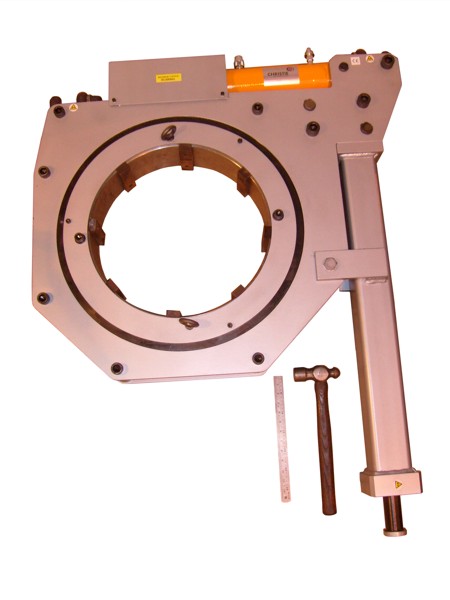

Large Direct Fit Hydraulic Torque Wrench

Dimensions: 1035mm(w) x 1250mm(h) x 132mm(d)


Tailor made for the removal and tightening of a 560mm round key lock nut, this large direct fit hydraulic torque wrench gives a stable and square reaction. With an extended cylinder for a higher degree of rotation per stroke, this tool significantly speeds-up this task, reducing downtime to a matter of hours rather than days.


Main Benefits

•  Overcomes the Health & Safety issues associated with carrying out the task manually.
•  Provides a stable and square reaction.
•  Will tighten to a known torque value, reducing the potential for downtime in the future due to failure of the lock ring.

Main Features

•  Extended cylinder for high degree of rotation per stroke.

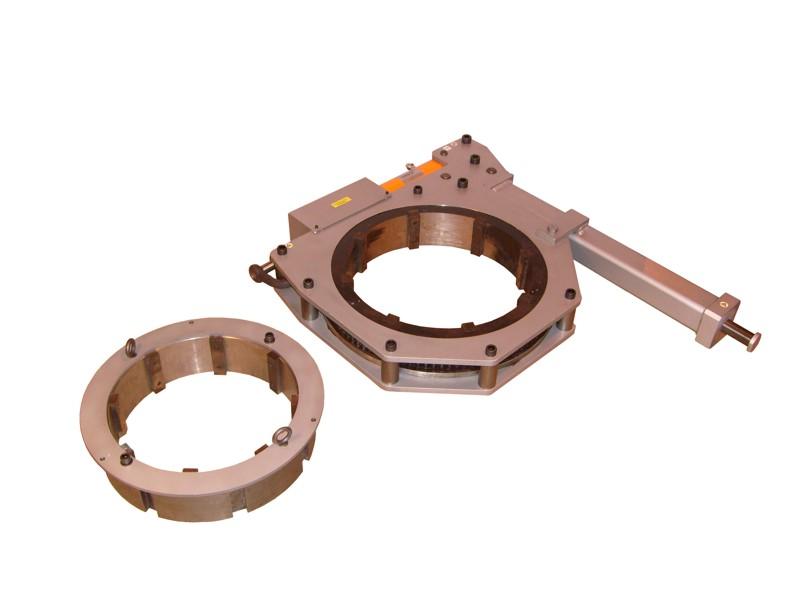

•  Reducing sleeve to enable tool to be used on a 460mm lock nut.
•  2 x ‘D’ shackle lifting points.
•  Adjustable reaction leg to ensure stable and square reaction.
•  Torque output 25,000 Nm Max.
