Torque Check Fixture

Request to buy this product

The Christie Torque Tool Test Fixture acts as a repeatable bolted joint to enable the torque consistency of powered non-impacting torque tools to be measured.

The system has two main components, a Torque Check Fixture and a Joint Rundown Assembly (a joint simulator).

The Joint Rundown Assembly consists of disc-springs which compress during tightening, gradually slowing the tool rotation prior to stall. This gives a controlled tightening action which in turn ensures accurate results. The disc-springs are designed to cope with repetitive testing at the rated capacity, giving consistent performance over time.

  • Easy read display
  • 200 - 2,000 Nm measurement range
  • Robust construction ensures consistency of performance and longevity

Image Gallery

Click on an image to enlarge

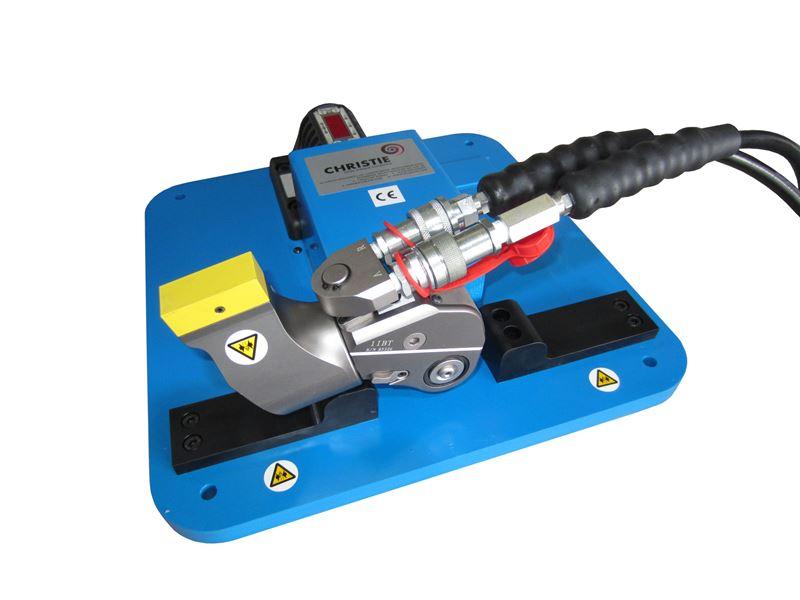

  • Torque Check Fixture

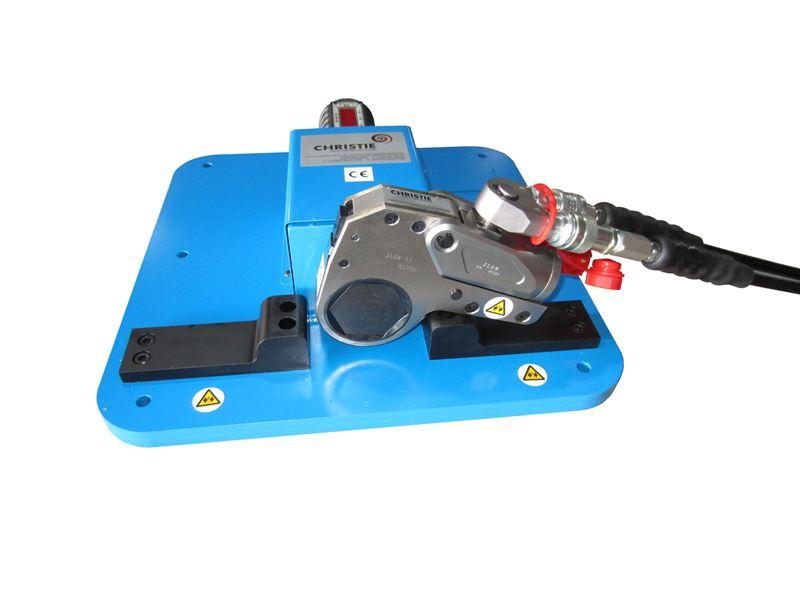

  • Torque Check Fixture

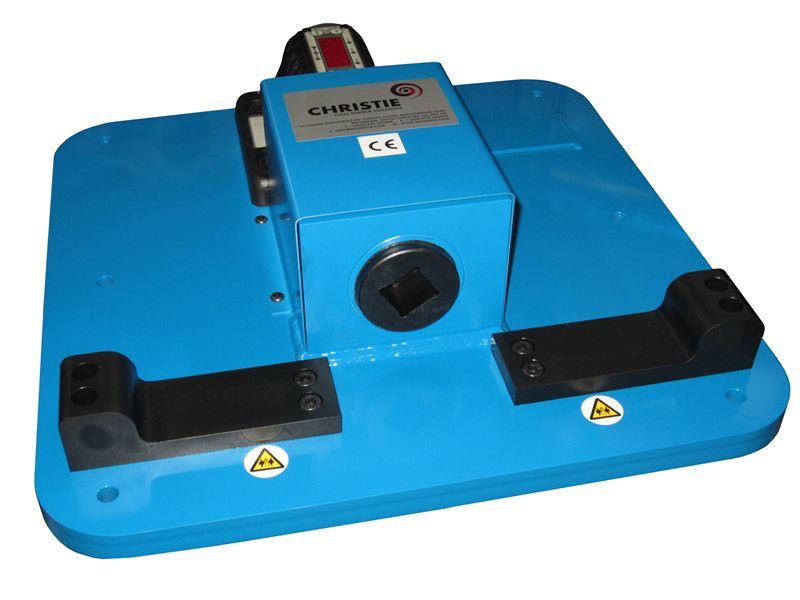

  • Torque Check Fixture

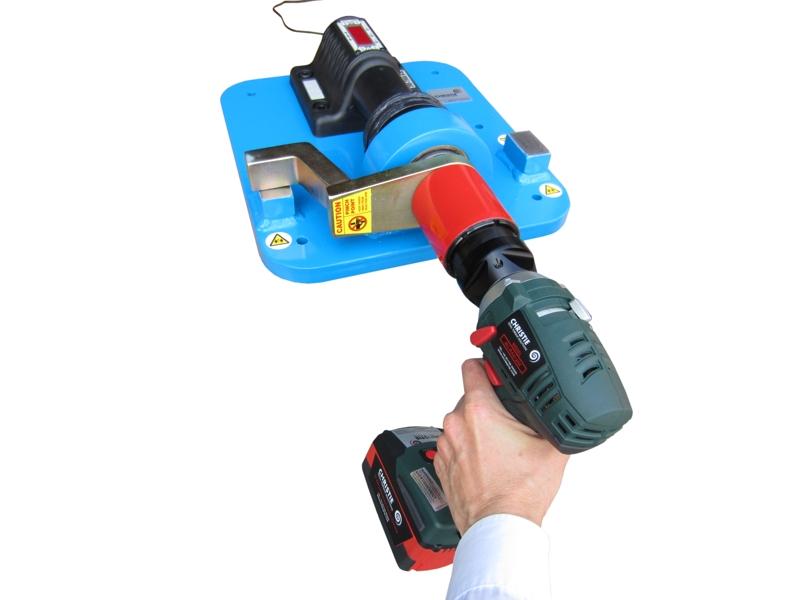

  • Torque Check Fixture in use with a Christie BC-RAD 20X battery operated torque tool.

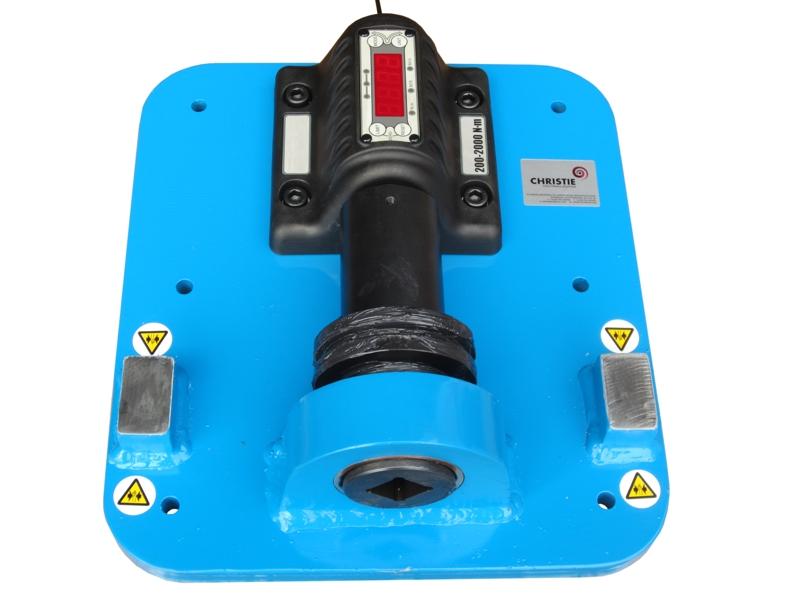

  • Torque Check Fixture capable of operating within a torque range of 200 - 2,000 Nm.

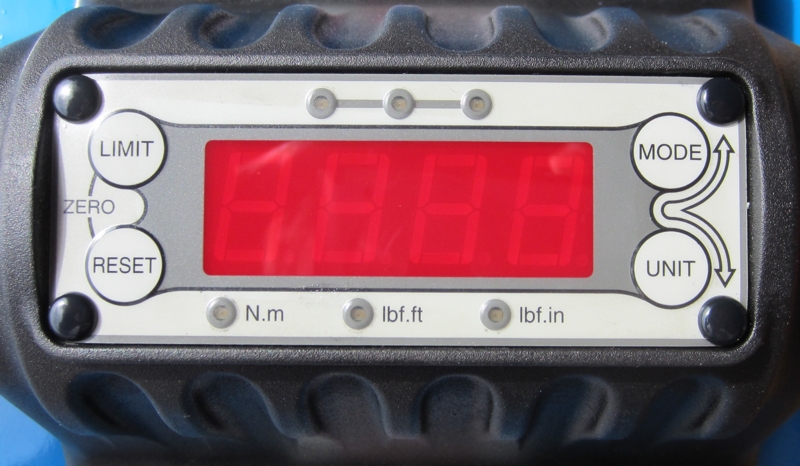

  • Easy read display with setting selection.
