LH (Low Height)

LH (Low Height)
Add this to your Querybox
Request to buy this product Request to hire this product Request brochure







Range Overview

(4 products in the range)

Weight:  6.5 - 26 kg

Max. A/F: 51 - 120 mm

Torque Capacity: 2,720 - 24,000 Nm





Product Leaflet (275.29KB)

Product System Overview (241.50KB)

Operating Manual (960.65KB)

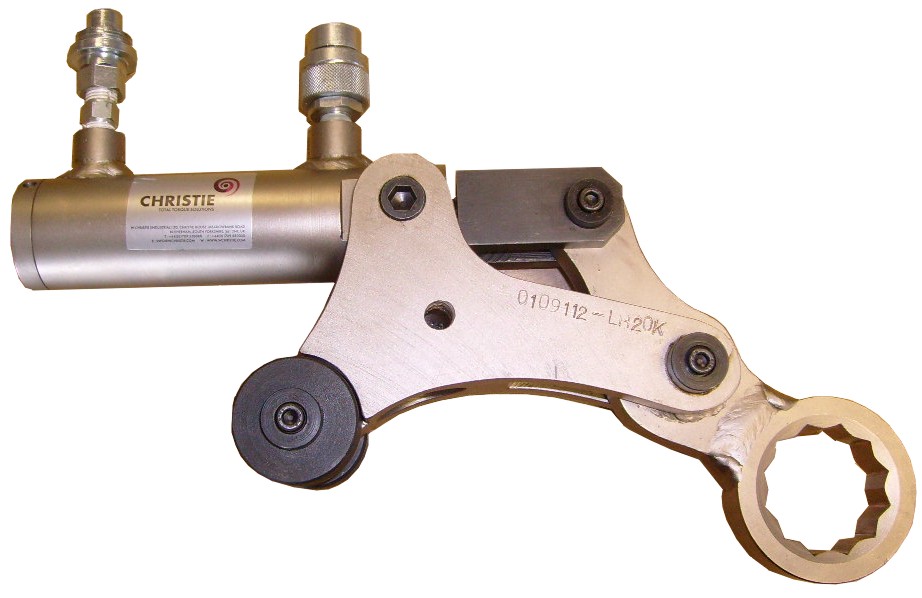

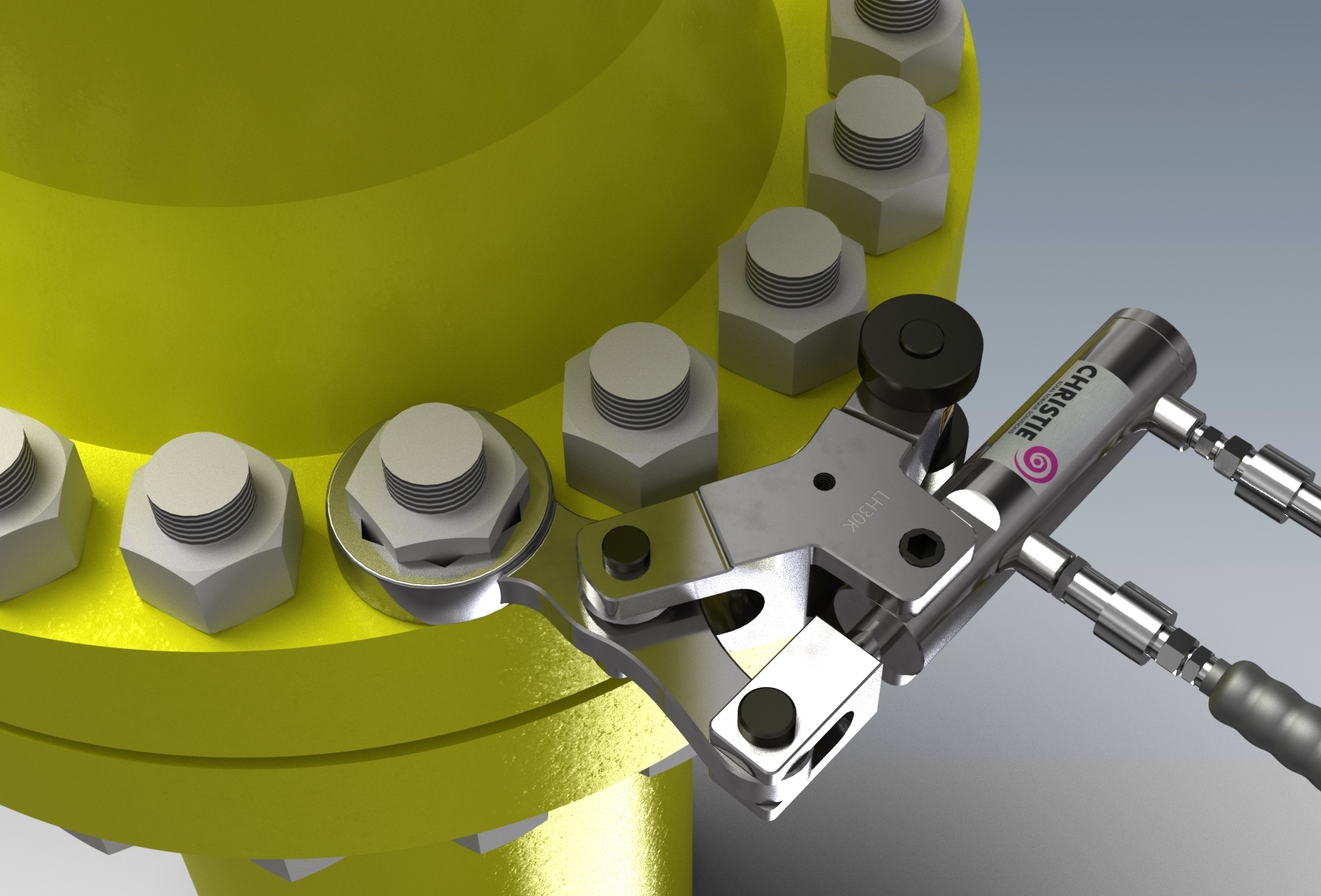

LH (Low Height) hydraulic torque tooling solves the problem of limited height access on flange fitting and maintenance by making the reaction point sit firmly on the rim of the flange.

Features include:

  • Static and ratchet reaction arms available
  • Torque capacity up to 24,000 Nm
  • Reaction arms up to 120mm across flats
  • 10,000 psi working pressure


For Hydraulic Pump Units (Power Packs) please select from the Matching Products & Accessories list
